技術分類Technical?Classification

項目規格Item

參數Parameter

電氣性能Electrical?Properties

供電電壓Input?voltage

DC24V

最大功耗Max.power?consumption

15W

光學性能Optical?Properties

光源組成LED?composition

216顆LED?

3216pcs?of???LED?lamps

光色LED?Color

紅色/綠色/藍色/黃色/白色/RGB?Red/Green/Blue/Yellow/White/RGB

光通量

luminous?flux

320?lm

光束角?Beam?Angle

140°

亮度等級Brightness?Grade

RGB?256?級?256?grade?RGB

光通維持率luminous?maintenance?rate

35000?hour@70%

控制方式Control?Mode

控制接口Interface

DMX512

控制系統Control?System

中鳴科技Easyplay5.0?(Joinmax)

結構性能Structure

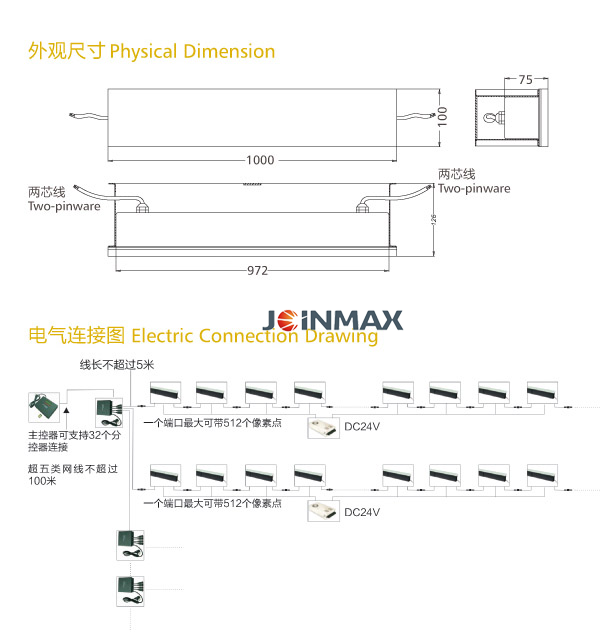

尺寸(長x寬x高)?Dimension?(L*W*H)

1000X100X75?mm

重量Weight

3Kg

燈體材料Material

#304不銹鋼壓鑄成型外殼；12mm鋼化玻璃燈罩。

#304?die-casting?stainless?steel?body,12mm?tempered?glass?lamp?shade.

表面顏色Surface?Color

黑色?Black

燈具連接Connection

公母接頭?Male?and?female?connectors

防護等級Protection?Rating

IP67

工作溫度Work?Temperature

-20℃～40℃

使用環境Work?Environment

-20℃～40℃

供電方式?

Input?Voltage

發光顏色?LED?Color

產品編號?Model

DC?24V

白光??5草帽?216顆15W

JZ04-121601-025

紅光??5草帽?216顆15W

JZ04-121604-025

綠光??5草帽?216顆15W

JZ04-121603-025

藍光??5草帽?216顆15W

JZ04-121606-025

黃光??5草帽?216顆15W

JZ04-121605-025

RGB??5草帽?216顆15W

JZ04-121602-025
