| 技術規格 Technical Parameter | ||
| 技術分類Technical Classification | 項目規格Item | 參數Parameter |
| 電氣性能Electrical Properties | 供電電壓 | AC90-260V |
| 最大功耗??????????? Max Power Consumption | 7.5W | |
| 光學性能??????????? Optical Properties | 光源組成?????????? Lamp | 60PCS(SMD3014) |
| 光通量???????? Luminous Flux | 480lm | |
| 顯色指數Color Rendering Index | CRI﹥75? | |
| 色溫Color Temperature | 2800-7000K? | |
| 光效Luminous Efficacy | 64m/W | |
| 光束角Beam Angle | 120° | |
| 光通維持率Luminous maintenance rate | 50000hour (﹫70%) | |

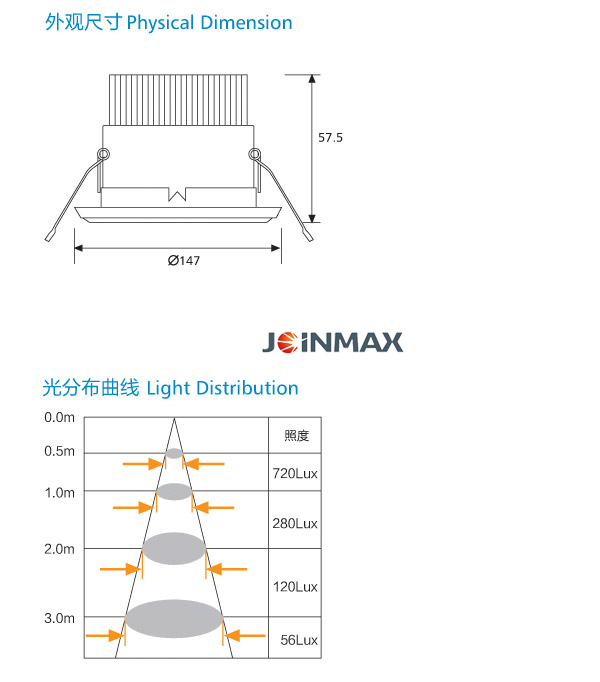

| 結構性能Structure | 尺寸（長*寬*高）Dimension (L*W*H)? | ?147*H57.5mm???????? |
| 開孔尺寸 | ?115mm | |
| 重量Weight | 350g | |
| ?燈體材料?????? Material | 車鋁???????? Aluminium | |
| 表面顏色??????? Surface Color | 白色White | |
| 防護等級???? Protection Rating | IP42 | |
| 工作溫度?????????? Work Temperature | -20°C-40°C | |
| 工作環境濕度?????? Work Humidity | 0-90% | |
| 使用環境?????????? Work Environment | 干燥/潮濕????? Dry/Wet? | |
| 安全性能Safety | CLASS Ⅱ | |
| 型號對照表 Model List | ||
| 供電方式????? Input Voltage | 發光顏色 ?LED Color | 產品編號 Model |
| DC90-260V | 2800-7000K | JZ03-206001-019 |
-
