| 技術分類? Technical Classification? | 項目規格Item | JZ12-210802-002 | JZ12-210801-002 | JZ12-212502-002 | JZ12-212501-002 |
| 電氣性能 Electrical Properties | 工作電壓 | 220-240V AC | 220-240V AC | 220-240V AC | 220-240V AC |
| 最大功耗? Max Power Consumption? | 6W | 6W | 9W | 9W | |
| 光學性能 Optical Properties | 光源組成Lamp | 108顆???????????????? 108PCS | 108顆???????????????? 108PCS | 125顆???????????????? 125PCS | 125顆???????????????? 125PCS |
| 光通量Luminous Flux | 600lm | 600lm | 900 lm | 900 lm | |
| 顯色指數Color Rendering Index? | CRI﹥75 | CRI﹥75 | CRI﹥75 | CRI﹥75 | |
| 色溫Color Temperature | 4000K | 5700K | 4000K | 5700K | |
| 光效Luminous Efficacy | 100lm/W | 100lm/W | 100lm/W | 100lm/W | |
| 光束角Beam Angle | 120° | 120° | 120° | 120° | |
| 光通維持率Luminous maintenance rate | 35000 hour(＠70) | 35000 hour(＠70) | 35000 hour(＠70) | 35000 hour(＠70) | |

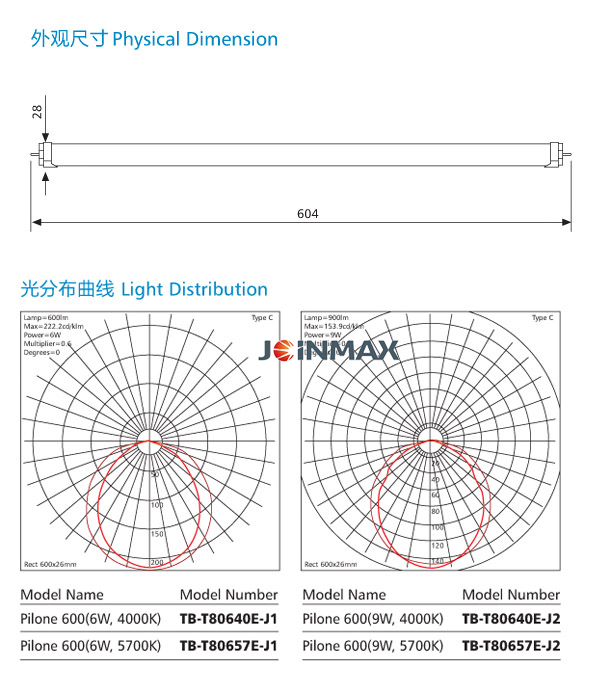

| 結構性能? Structure | 尺寸（長*寬*高） Dimension (L*W*H) | 604*28mm | 604*28mm | 604*28mm | 604*28mm |
| 重量Weight | 200g | 200g | 200g | 200g | |
| 燈體材料 Material | 玻璃管???????? Glass | 玻璃管???????? Glass | 玻璃管???????? Glass | 玻璃管???????? Glass | |
| 表面顏色Surface Color | 白色?????????? White | 白色?????????? White | 白色?????????? White | 白色?????????? White | |
| 防護等級???? Protection Rating | IP40 | IP40 | IP40 | IP40 | |
| 工作環境溫度? Work Temperature | －20°C－40°C | －20°C－40°C | －20°C－40°C | －20°C－40°C | |
| 工作環境濕度? Work Humidity | 10%-80% | 10%-80% | 10%-80% | 10%-80% | |
| 使用環境? Work Environment | 干燥???????????? Dry | 干燥???????????? Dry | 干燥???????????? Dry | 干燥???????????? Dry | |
| 安全性能 Safety | 認證Certificate | CE | CE | CE | CE |
-
