- Functional Description
- Specifications
- Applications
5、Quick initiation without starting problems and no stimulation for eyes. 6、Long working-life and lower maintenance cost 7、LED fluorescent light has soft light, purifies light spectrum, high color rendering index without radiation like ultraviolet rays and infrared light 8、In accordance with RoHS accreditation criteria without harmful material like mercury.
4、Lamp cap compatible with traditional lamp-socket and easy to install.

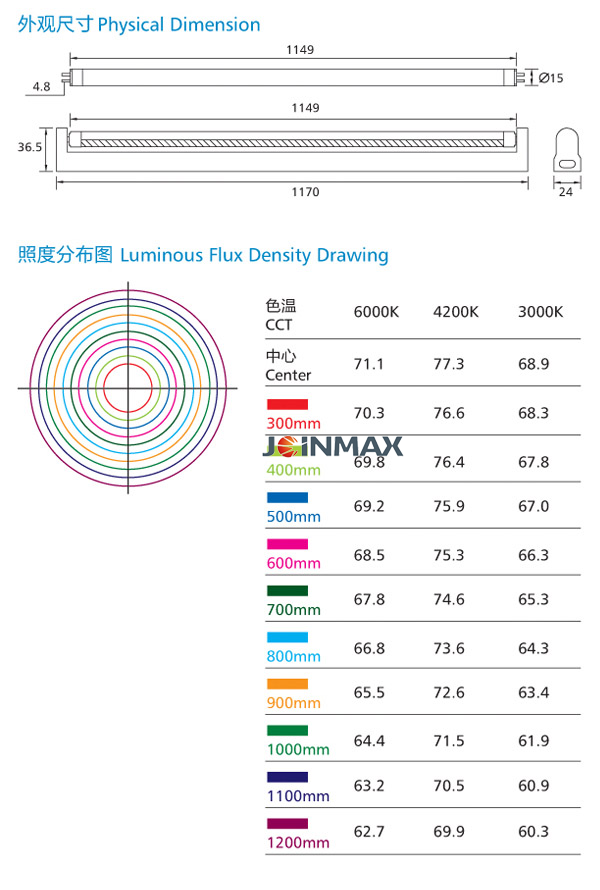

技術分類? Technical Classification? 項目規格Item 參數 Parameter 電氣性能 Electrical Properties 工作電壓 AC90-265V 最大功耗? Max Power Consumption? 14W? 功率因素Power Factor ﹥0.90 光學性能??? Optical Properties 光源組成Lamp SMD LED 光通量Luminous Flux 850lm-1010lm 顯色指數Color Rendering Index? CRI﹥70 色溫Color Temperature 2760－6600K 光效值Luminous Efficacy 72lm/W 光束角Beam Angle 120° 光通維持率Luminous maintenance rate 25550 hour (＠70)? 結構性能? Structure 尺寸（長*寬*高） Dimension (L*W*H) ?15*549 重量Weight 362g（含電源及支架）??? 362 (Power supply and fitting included) 燈體材料 Material PC/鋁/FR4??? PC/Aluminium/FR4 工作環境溫度? Work Temperature －20°C－55°C 工作環境濕度? Work Humidity ≤90%? 使用環境? Work Environment 室內干燥環境???????? Indoor Dry Environment 型號對照表 Model List 供電方式????????? Input Voltage ?發光顏色?????????? LED Color 光通量????????????? Luminous Flux 產品編號??????? Model AC90-265V? 2760-3160K 850lm JZ23-224003-016 3920-4600K 960lm JZ23-224002-016 5450-6600K 1010lm JZ23-224001-016
-
